Flatness of oil pan
Supporting instruments and systems
The form and dimension measurement system is used for measuring and analyzing the external dimensions of products, including micro displacement sensors and transmitters. The transmitter can be equipped with multiple small range displacement sensors, and the transmitter analyzes and processes the collected displacement sensor signals to obtain the appearance dimension data of the tested product. At the same time, it provides the result of whether the structural dimensions are qualified, and if necessary, it can further provide relevant information for correction.
The SMM201 shape and size measurement system is equipped with a 2.8-inch 320 * 240 dot matrix LCD screen with touch function, which is used for measuring and analyzing the external dimensions of the product. The transmitter can be equipped with up to 8 micro range position sensors. Through signal analysis and processing by the transmitter, the appearance size error data of the tested product can be obtained, providing relevant information on whether the product is qualified or corrected.
High-precision
Equipped with touch screen, adjustable parameters on site
The number of channels can be customized, supporting up to 8 channels
-
Applications
-
Basic Parameters
-
Dimensions
-
model
-
Request a Quote
-
Related Products
APPLICATIONS
-
-

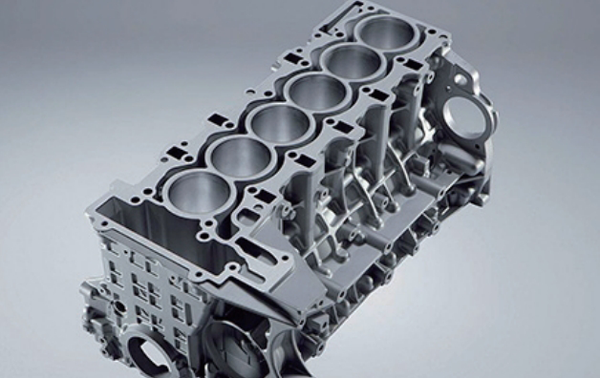

Cylinder flatness detection -
Flatness detection of mobile phone back cover -
Flatness detection of mobile phone shell
BASIC PARAMETERS
| Model | SDHB08-0.6 |
| Range | 0.6 mm |
| Repeatability | 0.003mm |
| Resolution | 0.001mm |
| Response time | ≤0.5ms |
| Supply Voltage | 5V DC |
| Protect the structure | IP67, corrosion preventive |
| Lifetime | ≥2 million |
| Contact force | ≤0.6N |
| Temperature drift | 0.25%/C/F.S |
| Temperature range | 0 ℃~80 ℃ (no freezing allowed) |
| Contact rated value | DC5V～DC24V， Steady state current below 10mA (impulse current below 20mA) |
| Output signal | RS485 signal/switch signal, open collector (OC) output |
| Output mode | Digital signal/switch signal |
| Wiring Method | Lateral routing |
| Lead wire length | 3 meters |
| Model | SMM201 |
| Input signal | Analog quantity (data update time is 1 second, up to 8 sensors can be connected, and the frequency response of each sensor should be 5HZ) |
| Power supply | 12V DC @ 100mA stabilized power supply (300mA) |
| Output signal | Open collector circuit (OC), RS485 signal (error value and set parameters can be output to PC or PLC) |
| Induction time | <0.5 ms； |
| Zero clearing | When placing standard samples, press this key to record the current value as a reference, while displaying an error of 0 |
